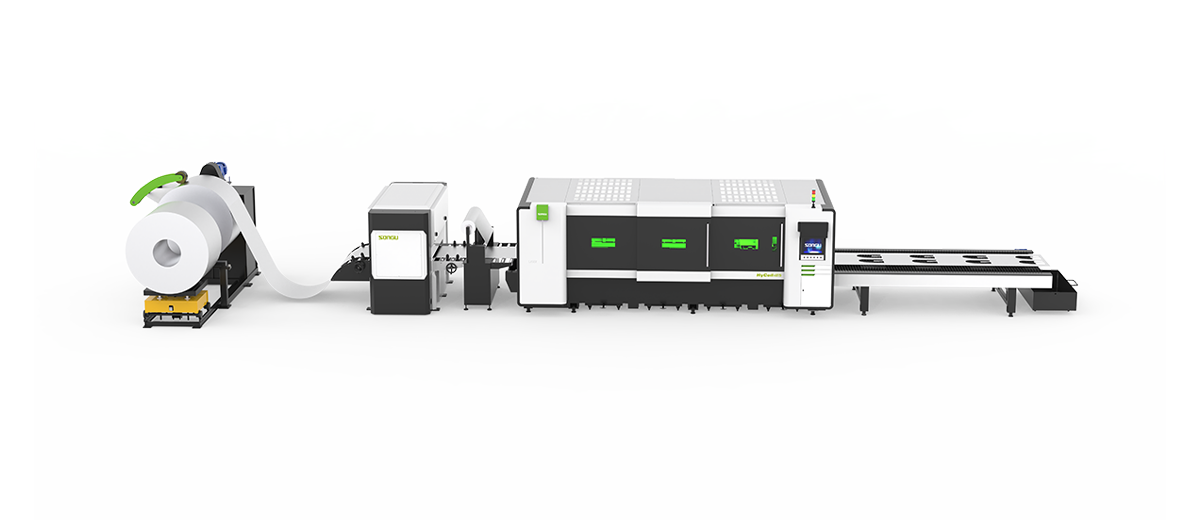

Coil Cutting Laser Machine

Coil Series

Laser power: 3000W

Automatic uncoiling, leveling, feeding, cutting, and unloading, easy for flexible production arrangement; Compact design, small floor space, low maintenance cost; Equipped with high-precision leveling, feeding and cutting systems, available for 24-hour working, highly improve the productivity; Support mixed-graphic nesting, no die mold needed, higher material utilization rate; Stable uncoil control, less deformation and twisting.

Features

Integrated multi-functions into one, create more value for customer

Automatic uncoiling, leveling, feeding, cutting, and unloading, easy for flexible production arrangement;
Compact design, small floor space, low maintenance cost;
Equipped with high-precision leveling, feeding and cutting systems, available for 24-hour working, highly improve the productivity;
Stable uncoil control, less deformation and twisting

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model number	NEAT3015L
Overall dimension	1300030001600mm
Working area	3000×1500mm
Laser power	3000W
Max coordinated speed	127m/min
Max acceleration	0.8G
Positioning accuracy	0.05 mm/m
Repeat positioning	±0.03mm
Allowable material weight	≈350kg （10mm）
Weight	3700kg

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

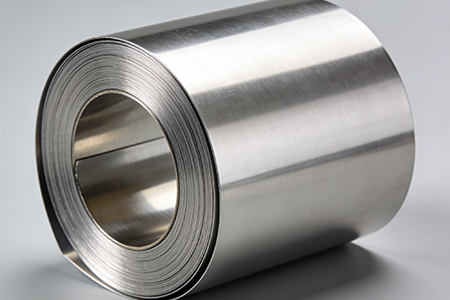

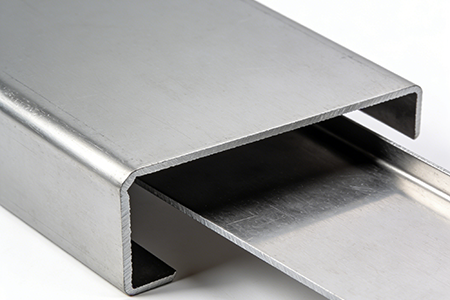

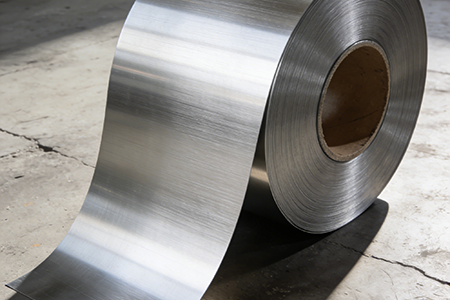

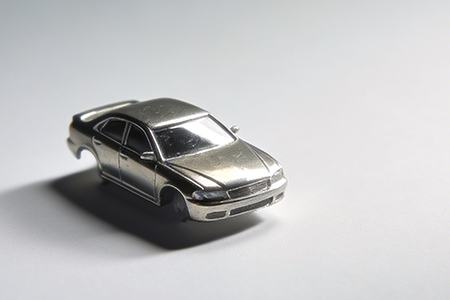

processing of billets for various metal parts such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, and copper etc

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
