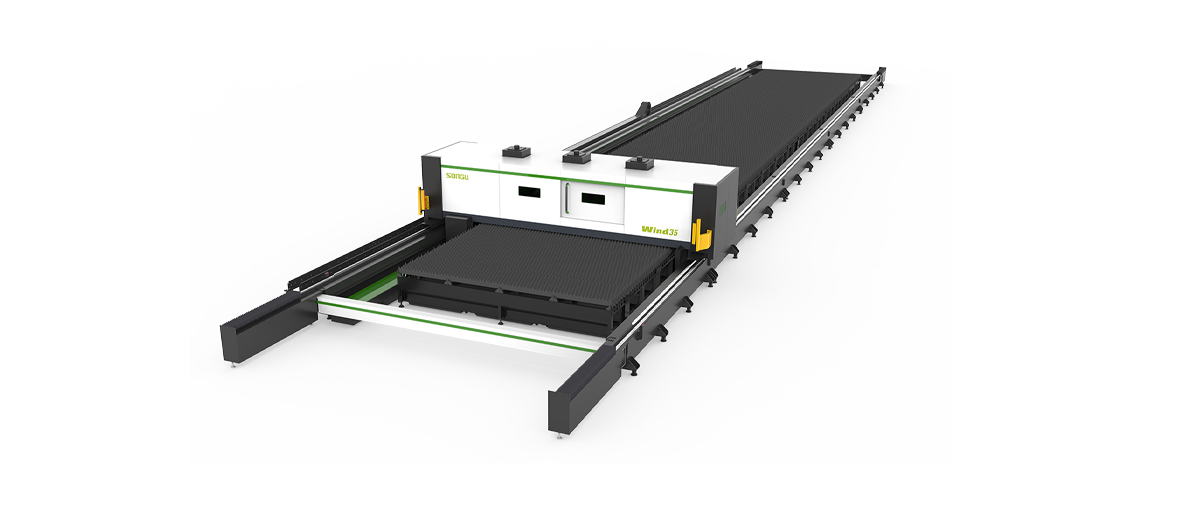

Line Rail Type Ultra-large Format Fiber Laser Cutting Machine

WIND series

Laser power: 12000W-30000W

Songu Laser Technology’s WIND series line rail type ultra-large format fiber laser cutting machine has a floating structure of the gantry crossbeam, a zero gap ground rail splicing body, and a non-contact capacitive sensing head from Germany, which can enable unmanned monitoring mode. Suitable for carbon steel laser cutting and stainless steel laser cutting.

Features

Intergrated multi-functions into one, create more value for customer

Zero-clearance machine bed
Zero-clearance assembled machine bed avoids vibration. Secondary annealing of the machine bed eliminates internal stress, and it will not deform during long-term operation;
Bochu control system
Applying Bochu control system with EtherCat bus to achieve fast computing speed, instant response and strong scalability;
Advanced aluminum crossbeam
Crossbeam employs cold drawn & extruded aluminum, with light weight, high rigidity, good dynamic characteristics, high precision and stable structure;
Automated cutting
The processing list can be set at one time to complete the cutting of different plates, different formats and different workpieces and the unattended mode will be extremely helpful under this situation;
PRECIETC capacitive senso
Capacitive sensor head from PRECIETC can automatically find the edge, and auto focus and positioning are available , which is perfectly suitable for cutting of uneven workpiece;
Enhanced deducting system
Zoned dedusting design in the cutting area, dedusting and filtering system of large air volume, both sides of the cutting area are equipped with dust collecting devices and smoke purifier, which achieves complete smoke exhaust.

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	WIND30A	WIND35A	WIND46A
Working area	13100mm/ 18100mm/ 25100mm	13100mm/ 18100mm/ 25100mm	13100mm/ 18100mm/ 25100mm
Laser power	12000w-60000w	12000w-60000w	12000w-60000w
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m
Repeated positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
Max positioning acceleration	0.8G	0.6 G	0.6 G
Max coordinated speed	100 m/min	100 m/min	100 m/min
Maximum load capacity	≈630kg/m2 (80mm)	≈630kg/m2 (80mm)	≈630kg/m2 (80mm)
Weight	8250/11200/14100kg	8500/11400/14300kg	8700/11600/14500kg
Overall dimension	(17100\24140\31350)×5270×2000mm	(17100\24140\31350)×5760×2000mm	(17100\24140\31350) ×6840×2000mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

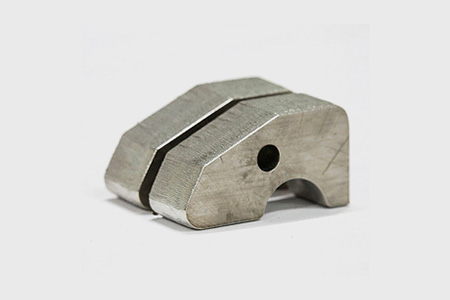

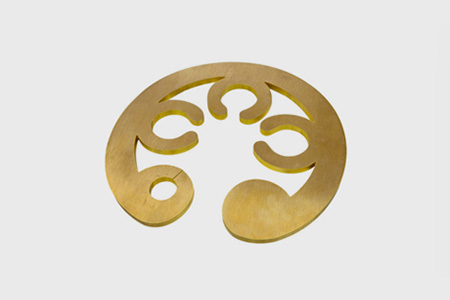

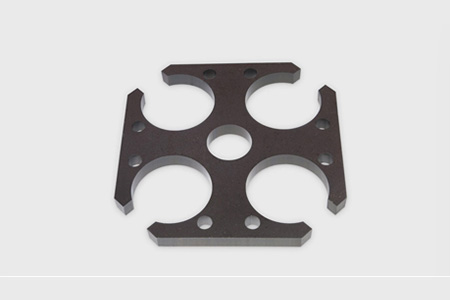

Application

Shipbuilding, bridge, construction machinery, wind power, aerospace and automotive industry, steel structure, port machinery, etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
