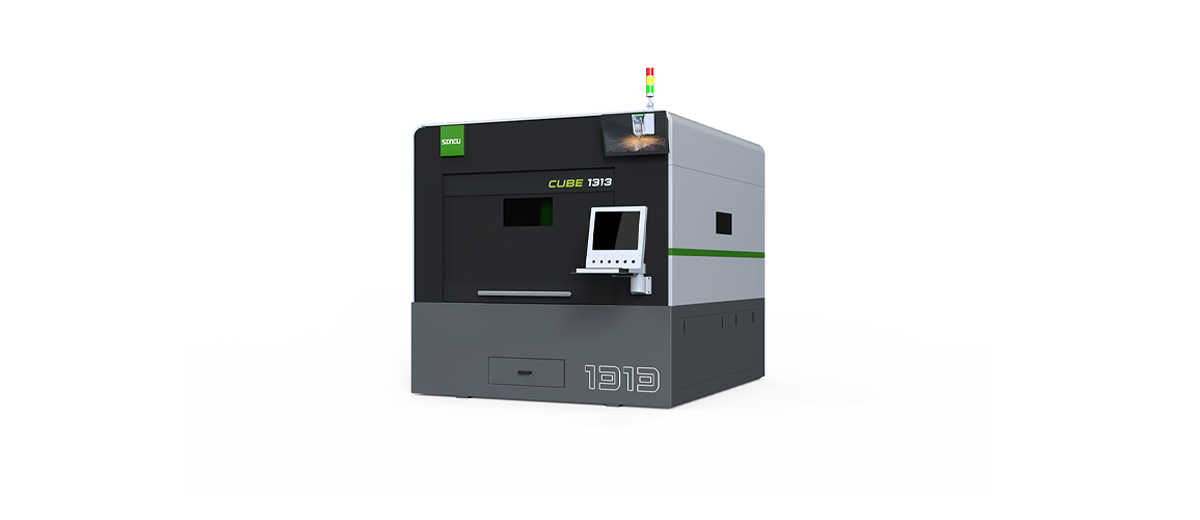

CUBE Series Fiber Laser Cutting Machine

CUBE Series

Laser power: Customized according to customer requirements

Gantry double-sided drive device, imported servo motor, equipped with highprecision reducer and rack and pinion, efficient and stable transmission; High-strength aluminum alloy extruded profile body, the overall light weight, high rigidity, small high-speed running inertia, fast action response, precise control; Adopting laser special control system, fast response, intelligent and efficient, easy to control; IPG laser imported from Germany, high photoelectric conversion rate, low power consumption; Fully enclosed protection design, equipped with laser radiation safety windows that meet international safety standards, to ensure safe production;

Features

Integrated multi-functions into one, create more value for customer

Gantry double-sided drive device, imported servo motor, equipped with highprecision reducer and rack and pinion, efficient and stable transmission;
High-strength aluminum alloy extruded profile body, the overall light weight, high rigidity, small high-speed running inertia, fast action response, precise control;
Adopting laser special control system, fast response, intelligent and efficient, easy to control; IPG laser imported from Germany, high photoelectric conversion rate, low power consumption;
Fully enclosed protection design, equipped with laser radiation safety windows that meet international safety standards, to ensure safe production;
The appearance of the unique industrial design, which has won the appearance patent, conforms to the European standard design standard, and the control is more convenient and efficient; the multi-modular design can work 24 hours without interruption;
Efficient workflow
Embedded design of all cutting parameters, automatic selection and setting of the system, real-time monitoring of internal working conditions, reducing manual intervention.

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model number	CUBE 1313
Overall dimension	3430×2250 ×2255mm
Working area	1300×1300mm
Laser power	1500~6000W
Max coordinated speed	110m/min
Maximum accelerated speed	1.2G
Positioning accuracy	0.05mm/m
Repeat positioning	±0.02mm
Allowable material weight	≈250kg (20mm)
Weight	1500kg

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

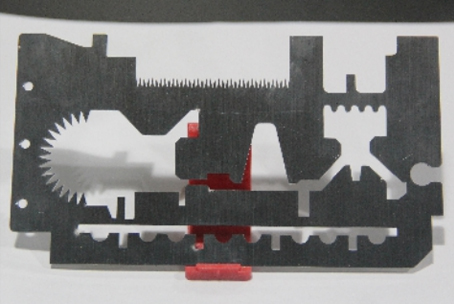

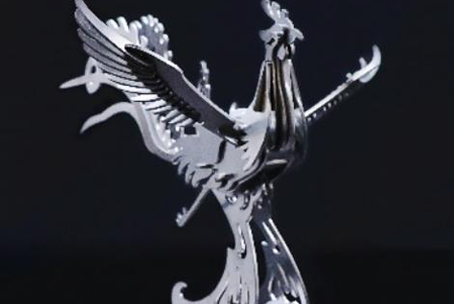

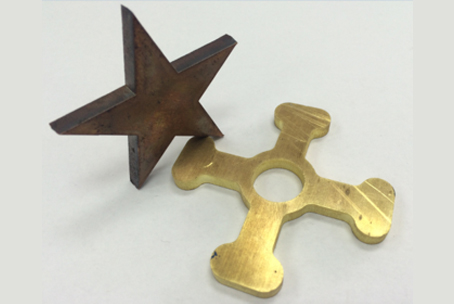

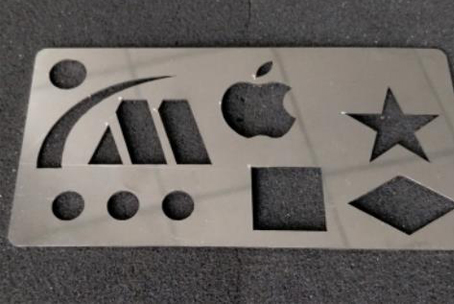

Metal materials such as Carbon steel, Stainless steel, Aluminum alloy, Titanium alloy, Galvanize sheet, Brass, Red copper etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
