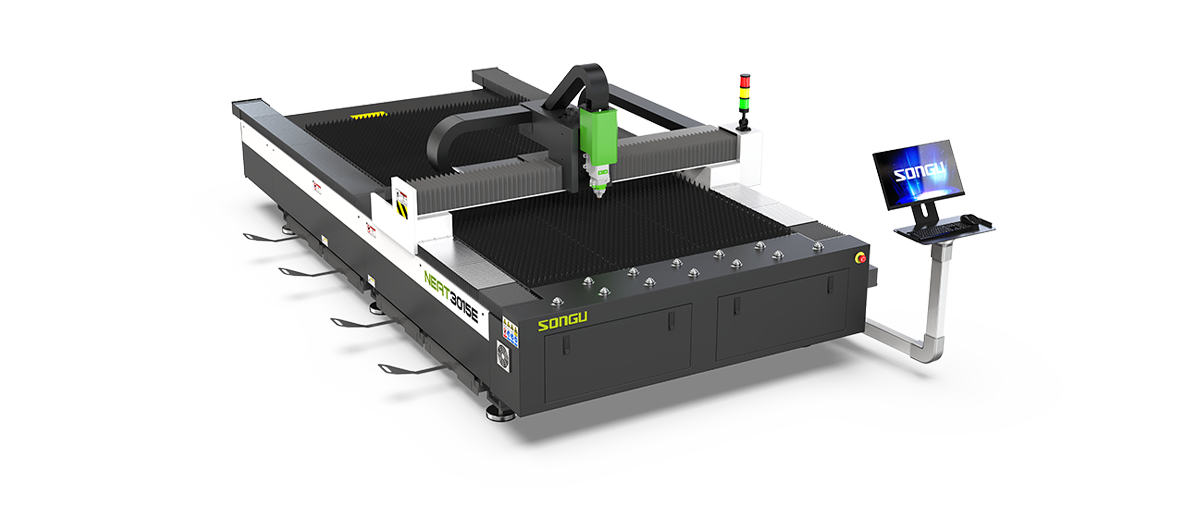

Medium Power Single Table Fiber Laser Cutter Series

NEAT4015E

Laser power: 1500~ 12000W

Based on SONGU Laser's 20 years of experience in bed design and processing, we have designed the smallest NEAT3015 standard format laser processing bed to date, making the entire machine more compact and convenient. Independent design and dual-process assurance ensure bed stability; equipped with a complete set of Inovance professional servo motion systems and core laser components, guaranteeing reliable overall operation of the equipment. The machine is transported fully assembled, eliminating the need for disassembly before shipping or on-site assembly, enabling immediate use upon installation and power-up.

Features

Integrated multi-functions into one, create more value for customer

Based on SONGU Laser's 20 years of experience in bed design and processing, we have designed the smallest NEAT3015 standard format laser processing bed to date, making the entire machine more compact and convenient.
Independent design and dual-process assurance ensure bed stability; equipped with a complete set of Inovance professional servo motion systems and core laser components, guaranteeing reliable overall operation of the equipment.
The machine is transported fully assembled, eliminating the need for disassembly before shipping or on-site assembly, enabling immediate use upon installation and power-up.
A 700mm material table height facilitates easy loading and sorting of sheet materials; a 1100mm human-machine interface reduces operator fatigue and improves work efficiency
Lubrication frequency can be set independently, allowing lubrication to be supplied quantitatively based on production volume. Equipped with an oil shortage alarm function, the machine ensures worry-free operation. The exposed design of the cutting head and the travel switches of each motion axis facilitate daily inspection and maintenance.

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model number	NEAT3015E/NEAT4015E/NEAT6015F/NEAT4020C
Overall dimension	4865×2445×1540mm/6105×2445×1540mm/6865×3575×1925mm/8830×2440×1930mm
Working area	3000×1500mm/4000×1500mm/6000×1500mm/4000×2000mm
Laser power	1500/3000W/1500/3000W/3000~12000W/1500~12000W
Max coordinated speed	127m/min / 127m/min / 80m/min / 100m/min
Maximum accelerated speed	0.8G/0.8G/0.8G/1.2G
Positioning accuracy	0.05mm/m
Repeat positioning	±0.03mm
Allowable material weight	≈350kg（10mm）/≈470kg(10mm)/≈2500kg(40mm)/≈2800kg(40mm)
Weight	1200kg/1600kg/5100kg/4600kg

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

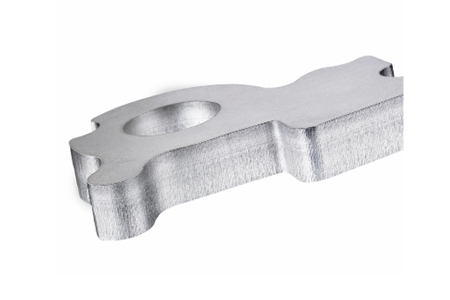

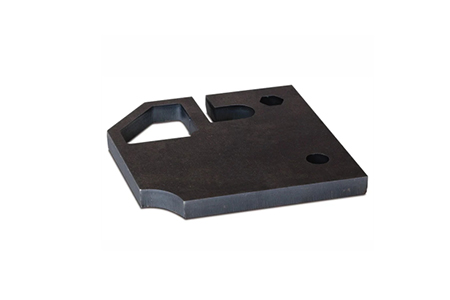

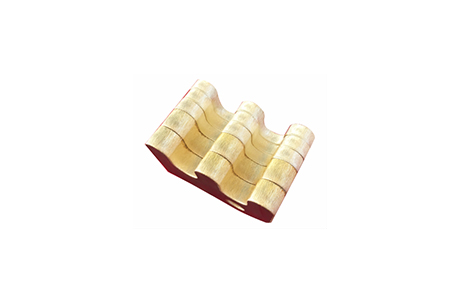

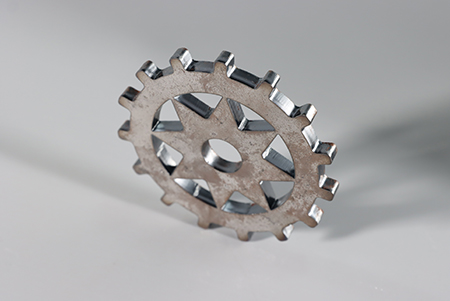

Metal materials such as Carbon steel, Stainless steel, Aluminum alloy, Titanium alloy, Galvanize sheet, Brass, Red copper etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
