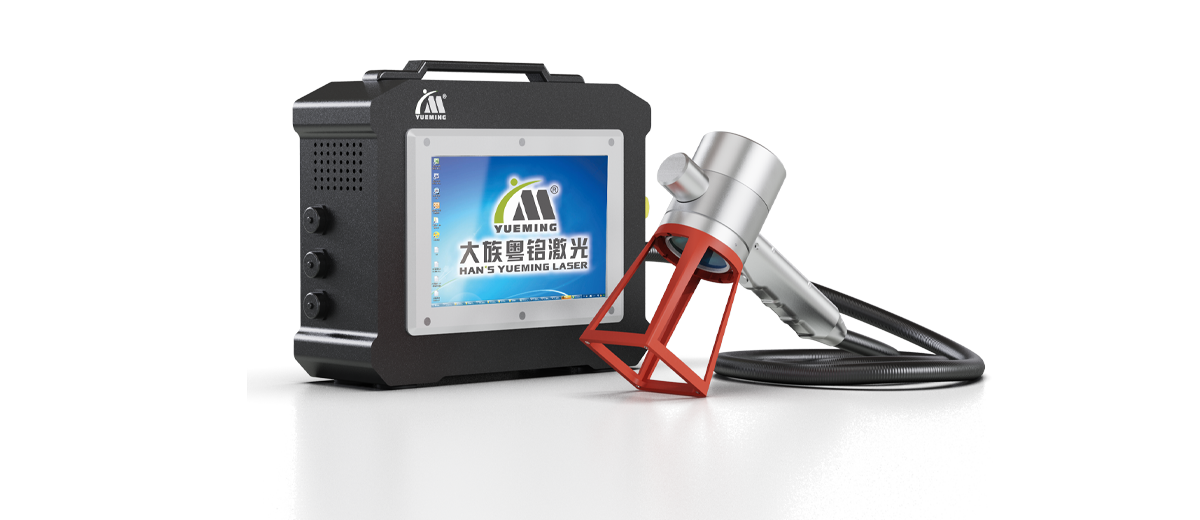

Handheld Fiber Laser Marking Machine Series

HF-B-A

Laser power(w):≥20W

Light laser head; laser out by pressing button; red light for preview; marking flexibly and conveniently. 10 inch colorful touch screen, embedded LINUX OS system, simple operation interface, simple-settled parameter; strong compatibility; no-computer control; Self-developed professional marking software, with multiple models, compatible with kinds of vector, graphics, customized text and other file formats.

Features

Integrated multi-functions into one, create more value for customer

Self-developed professional marking software, with multiple models, compatible with kinds of vector, graphics, customized text and other file formats.
Self-developed Laser marking App: able to operate the machine via Phone or Pad; support one key editing, easy for new operator to master and use;
Professional customized industrial grade fiber laser generator and galvanometer, with stable power output, and precise laser spot; Unique anti-vibration design, ensuring the high efficiency and high precision marking, without caring the matter of harsh environment;
Centralized design, flexible and portable, can be held in suitcase, easy to transport; Inserted large capacity battery, supporting long-term working up to 8h, without any stop.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	HF-B-A
Working area	70×70mm
Overall dimension	320×245 ×120mm
Laser power	≥20W
Speed	≥7000mm/s
Laser wavelength	1064nm
Working time	≤4h
Handle weight	≤1.1kg
Weight	≤6kg
Working environment	Temp:15~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

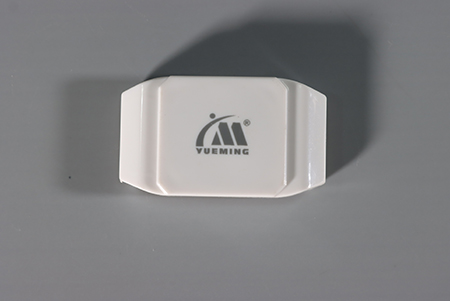

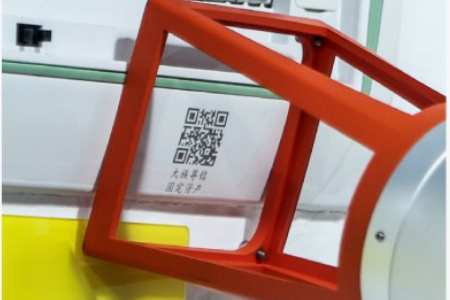

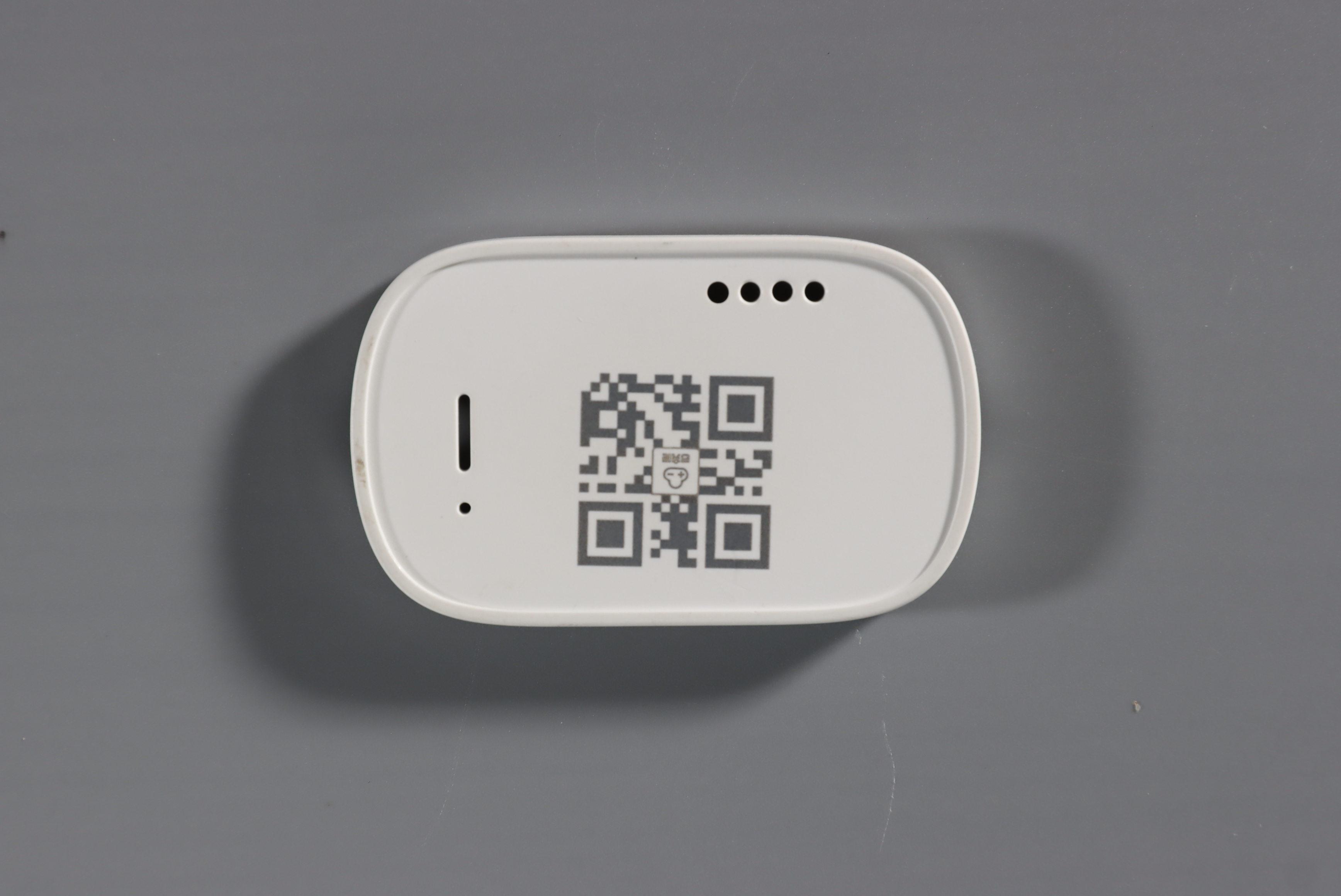

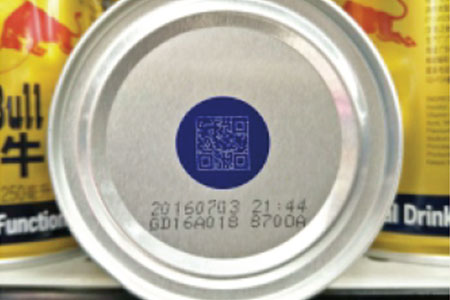

Application

Metal,plastic,wood,leather,paper plate,acrylic,glasses,and stone,etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
