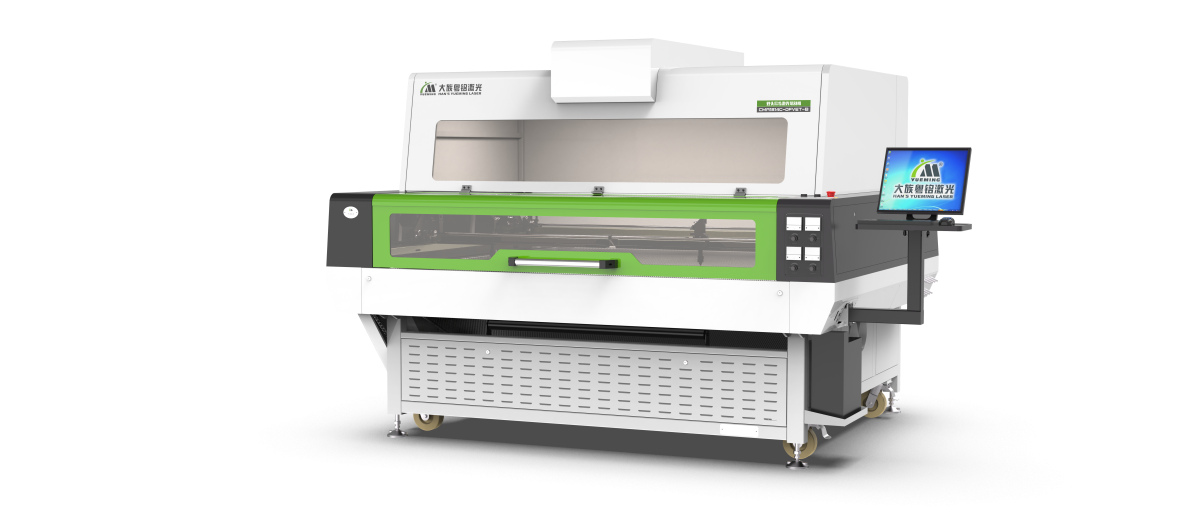

Automatic Feeding CO2Laser Cutting Machine Series

CMH1610C-F-A

Laser power(w):80-180w

Epsilon type of conveyor as standard , other type conveyor as optional For the epsilon type of conveyor, the front&back presser, as an optional device, can be applied together to ensure the cutting accuracy. Multiple-layer of material feeding is available.

Features

Integrated multi-functions into one, create more value for customer

Electric heads(Two) as optional for separate and independent working. CCD camera , pen, large-format vision system and projecting functions areoptional for better cutting experience
Epsilon type of conveyor as standard , other type conveyor as optional. For the epsilon type of conveyor, the front&back presser, as an optional device, can be applied together to ensure the cutting accuracy. Multiple-layer of material feeding is available.
Auto-feeding and unloading system, the two laser heads distance adjust automatically, save time;Nesting software is optional, support mixed nesting, edge-sharing cutting, save material;
Laser head distance can be adjusted automatically, depending on the nesting result.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMH1610C-F-A/CMH1810C-F-A/CMH1610C-FT-A/CMH1610C-FQ-A/CMH1810C-FT-A
Working area	1600×1000mm/1800×1000mm/1500×1000mm/1250×1000mm/700×1000mm
Overall dimension	2210×2120×1200mm/2410×2120×1200mm/210×2120×1200mm/210×2180×1200mm/410×2120×1200mm
Laser power	80~180W/0~130W
Speed	0~30m/min
Laser head	one/two/our
Gross power	1.6/2.35/4kW
Weight	840kg/940kg/850kg/950kg/900kg
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Cutting of flexible composite materials for automobile safety airbags .

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
