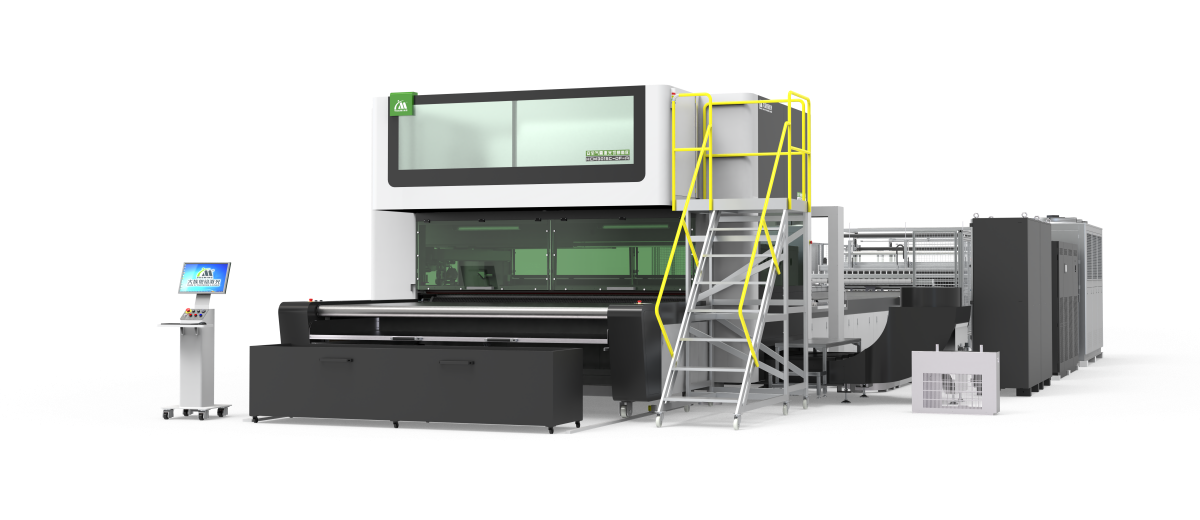

Airbag Double Head Asynchronous Laser Cutting Bed Series

HCM3015C-DF-A

Laser power(w):3000W

Adopt linear motor to the transmission system, getting max acceleration up to 4G, max speed up to 150m/min;As ynchronous double cutting heads, Fly Cutting, and Intelligent task arrangement, maximize the processing efficiency;Stepless speed adjustment of the exhaust fan enables the intelligent adjustment on the value of negative exhausting pressure in cutting area according to different situations

Features

Integrated multi-functions into one, create more value for customer

Adopt linear motor to the transmission system, getting max acceleration up to 4G, max speed up to 150m/min;
Asynchronous double cutting heads, Fly Cutting, and Intelligent task arrangement, maximize the processing efficiency;
Stepless speed adjustment of the exhaust fan enables the intelligent adjustment on the value of negative exhausting pressure in cutting area according to different situations;
Fully-enclosed cutting area, with intelligent fire monitoring system, ensures the equipment safety;
High-rigidity reinforced welding bed, processed by imported large gantry machining center; and after secondary annealing, eliminate the stress effectively;
Original advanced imported laser generator, with high quality light dot and stable output, enabling the high-precision cutting;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	HCM3015
Working area	3000×1500mm
Overall dimension	32400× 7000 × 3200mm
Laser power	3000W
Feeding speed	18m/ min
Positioning accuracy	±0 .03mm /1000mm
Repeated Positioning accuracy	±0 .02mm /1000mm
Gross power	200kW
Weight	38T
Maximum accelerated	4G
Working environment	Temp:5~40°C Humidity:≤80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Cutting of flexible composite materials for automobile safety airbags .

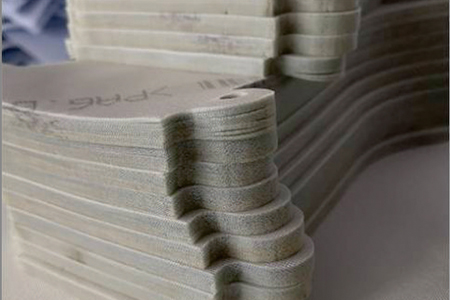

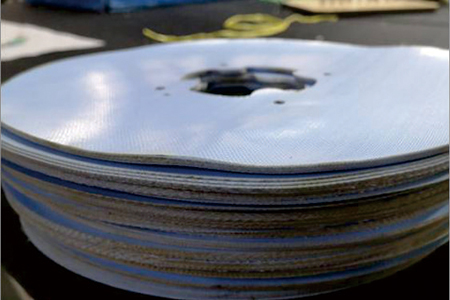

Car airbag laser cutting
Car airbag laser cutting
Car airbag laser cutting
Car airbag laser cutting

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
