<title>Fixed Worktable CO2 Laser Cutting Machine

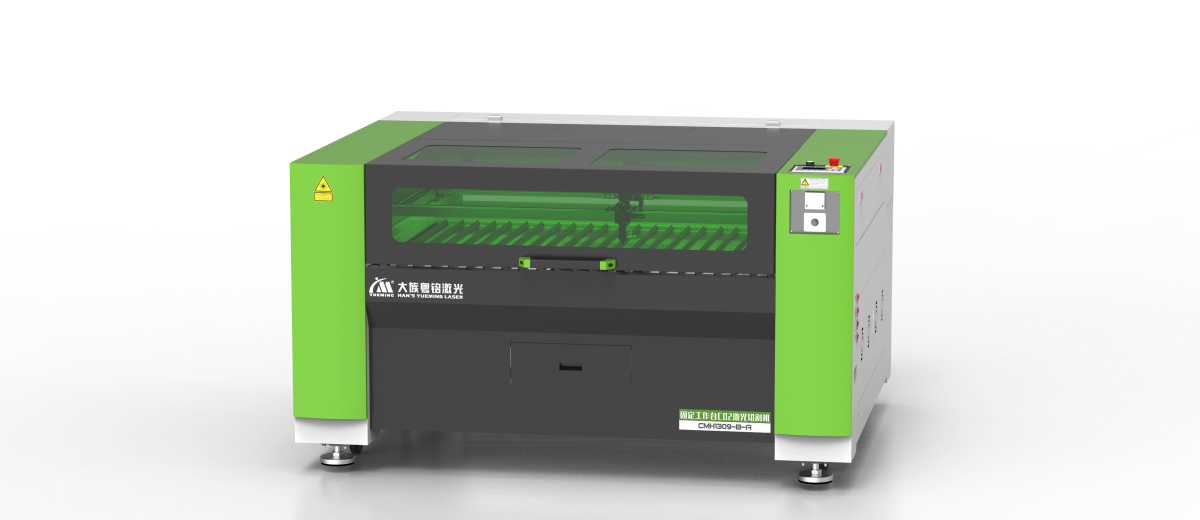

Fixed Workbench CO2Laser Cutter Series

CMH1309-B-A

Laser power(w):80-300W

The "upgrade version" machine integrates various auxiliary machine power supplies on the fuselage, unified control,all handles and door locks are ergonomically designed, and the huge auxiliary machine reserve box design on the back of the machine makes the customer's on-site auxiliary machine placement more reasonable, fully meet the 6S management requirements;

Features

Integrated multi-functions into one, create more value for customer

The "upgrade version" machine integrates various auxiliary machine power supplies on the fuselage, unified control,all handles and door locks are ergonomically designed, and the huge auxiliary machine reserve box design on the back of the machine makes the customer's on-site auxiliary machine placement more reasonable, fully meet the 6S management requirements;
Equipped with YM Laser self-developed Smart Carve software and controller, adopts high-speed Interpolation movement algorithm to achieve high-speed and stable performance;Support Ethernet(10/100M) and USB2.0 transmission;
Support dynamic display which will show process path and coordinate point, real-time work track display;Support work time preview and interruptible engraving recovery after power-off;
Support laser spot compensation (inward contraction and outward extension), the laser cutting Path optimization can be done on software.Modular design can be equipped with different functions which make smaller size and less shipping cost.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMH0604-B-A/CMH1008-B-A/CMH1206-B-A/CMH1309-B-A/CMH1610-B-A/CMH1008-T-A/CMH1206-T-A/CMH1309-T-A/CMH1610-T-A
Working area	600×400mm/CMH0604-B-A/1000×800mm/1200×600mm/1300×900mm/1600×1000mm/900×800mm/1100×600mm/1200×900mm/1500×1000mm
Overall dimension	1900×1060×1100mm/2020×1580×1100mm/1970×1380×1100mm/1900×1700×1100mm/2220×1780×1100mm/2020×1580×1100mm/1970×1380×1100mm/1900×1700×1100mm/2220×1780×1100mm
Laser power	80/100/130/180/300W
Speed	30m/min
Laser head	one/two/our
Weight	260kg/340kg/340kg/340kg/410kg/345kg/345kg/380kg/410kg
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

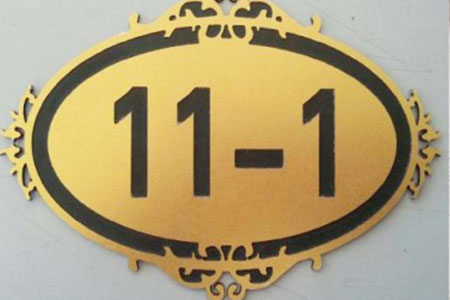

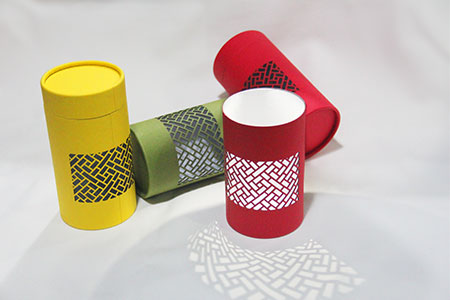

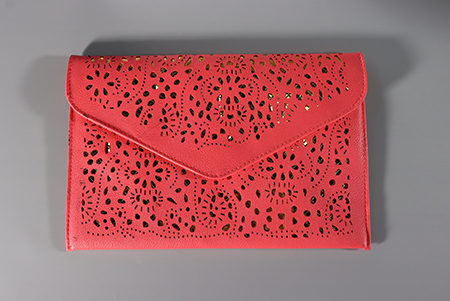

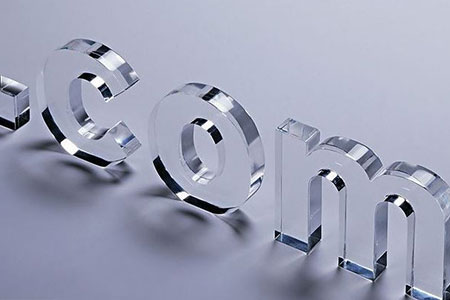

Nonmetallic material like wood, paper , epoxy resin, acrylic, plastic, rubber and bamboo , etc

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
