<title>High-speed CO₂ laser engraving machine

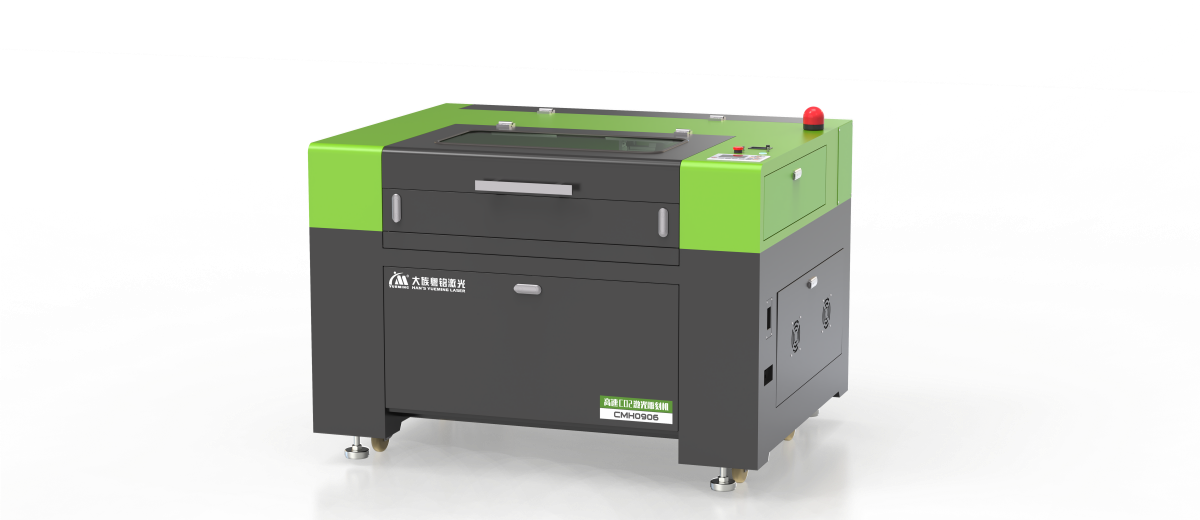

High-Speed CO2Laser Engraving Machine Series

CMU0906

Laser power(w):30-100W

Electric lifting platform, lifting height 0-300mm, more suitable forhollowing and engraving products with different heights;

Features

Integrated multi-functions into one, create more value for customer

Electric lifting platform, lifting height 0-300mm, more suitable forhollowing and engraving products with different heights;
Integrated machine structure design, with high-speed, stable engravingand better effect.Fully protective design of the whole machine, good sealing effect, lownoise, effectively protecting the optical path from pollution;
Digital ammeter, the display is more intuitive and the data is moreaccurate; The air intake regulating valve accurately controls the gas flow, supportsadjustment for engraving and cutting;
Optional rotary device, which suitable for wine glasses and variable.diameter cylindrical products high-speed engraving.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMU0906
Working area	900×600mm
Overall dimension	1651.5x1250x1120mm
Laser power	30-60W/80-100W
Speed	72m/ min
Maximum lifting height	280-300mm
Gross power	1.25kW
Weight	320kg
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Mainly used for non-metallic materials cutting and engraving, such as plexiglass, wood boards, cloth, leathel

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
