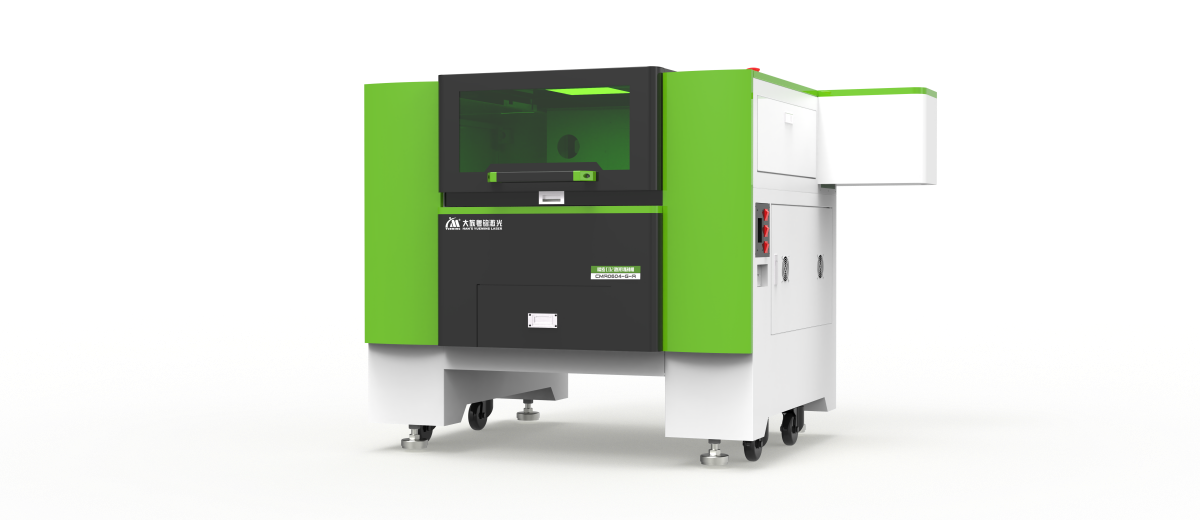

Electronics Industry CO2Precision Laser Cutting Machine Serie

CMA0604-G-A

Laser power(w):60-130W

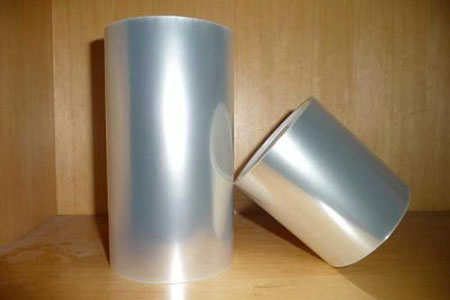

Hans Yueming CO₂ Precision Laser Cutting Machine features servo motors and ball screw modules, ideal for cutting phone films and speaker mesh.

Features

Integrated multi-functions into one, create more value for customer

The screw motion module structure uses famous servo motor with high inertia and high torque to ensure machine high speed and high precision
The screw motion can greatly improve processing efficiency; Honeycomb working table and blade solid strip working table are optional for different material;
High-rigidity machine body of sheet metal bending and welding, equipped with self-developed system from Han’s Yueming can ensure the machine runs smoothly;
Famous domestic laser tube with high-quality optical spot and stable power. It is compatible with 55W RF laser generator as well.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMA0604-G-A/CMA1008-G-A
Working area	600×400mm/1000*800MM
Overall dimension	1530×1046×1070mm/1850×1046×1070mm (130W)
Laser power	60~130W
Speed	0~30m/min
Transmission system	Screw module
Repeated Positioning accuracy	±0.05mm
Gross power	1.5/1.7kW
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Electronic industry mobile phone accessories electronic accessories and other non-metal cutting

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
